Name: RPi ESTATE
Type: Raspberry Pi Board
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:

• 2 RGB LED (support plastic cover for better view
• DS3231 RTC
• DS18B20 Temperature Sensor
• AT24Cxx EEPROM module with Write Protection option
• Voltage regulator AS1117 3.3V for support to all elements

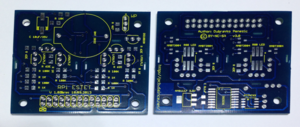

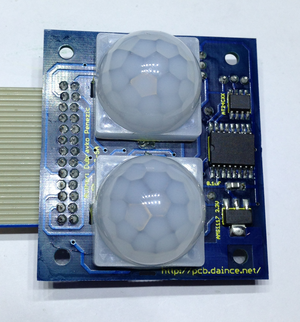

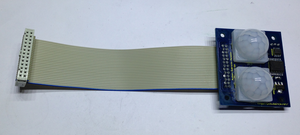

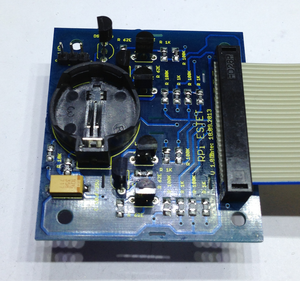

PCB Top & Bottom image:

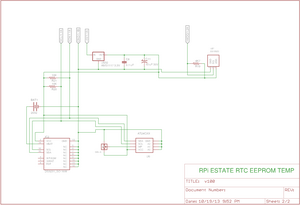

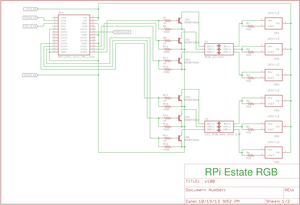

Schematic:

Documentation and examples are available on GIT repository.

git clone http://gitlab.daince.net/publicprojects/rpi-estate-v100.git
