Name: LCD & KYB
Type: Adpater Board
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:

• Write LCD 4-bit data transfer
• LCD backlite programatical control
• Analogue 5 keys keypad (Arduino like)

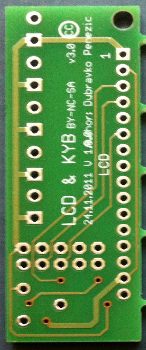

PCB Top image:

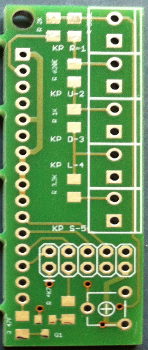

PCB Bottom image:

Digital Output Pin: 30, 32, 34, 36, 38, 40, 42, 44
Power Pin: GND, +5V (see supported function)

Schematic is provided in follow file lcd_kyb_v_1_0_0.pdf
