A/D Expansion PCB
Digital Pin Connectors
Description
A/D Expansion shield provide 4 Digital Pin connectors (DPIO1, DPIO2, DPIO3, DPIO4) which are connected directly to digital pins.
Used Pins

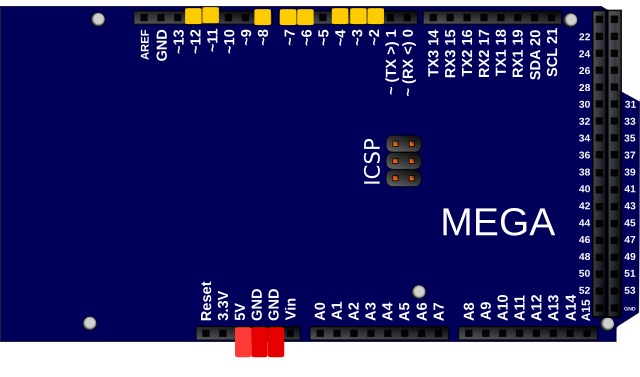

Digital Pin: 2, 3, 4, 6, 7, 8, 11, 12
Power Pin: GND, +5V
