Data Logger PCB
supported function
Description
Two standard function on Arduino shileds :
- RESET button
- LED on digital pin 13

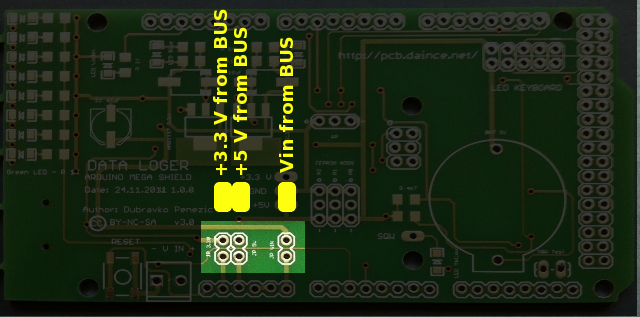

Power regulator for +5 V and +3.3 V using AMS1117 IC

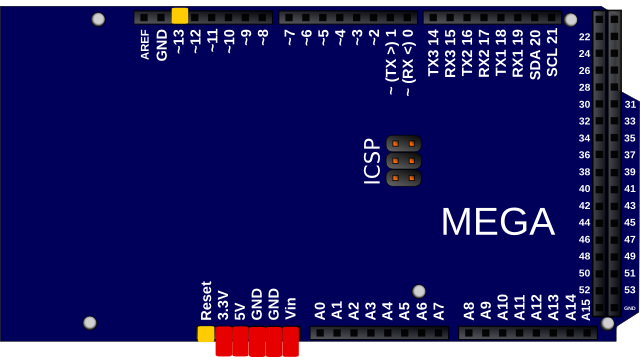

Used Pins
Digital Pin: 13
Power Pin: GND, +5V, +3.3V, VIN
Other Pin: RESET
Example
Jumpers
DL-000 Kit (basic)

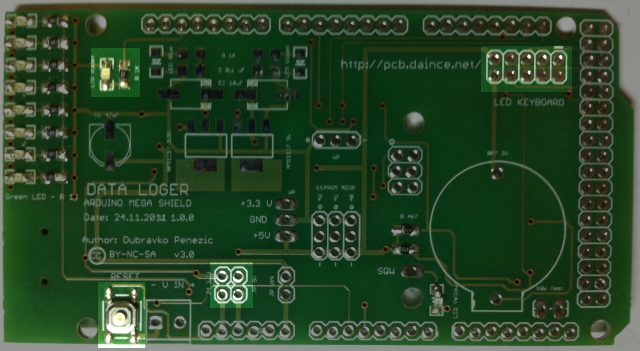

Parts
- 1x PCB DATA LOGGER V 1.0
- 1x Micro Switch SMD
- 2x 1×2 Pin Header 0.1
- 2x Pin Cap (red) 0.1
- 1x Purple LED 0805 SMD
- 1x 1K Resistor 0805 SMD
- 1x 2×5 Pin Header 0.1
Montage
