A/D Expansion PCB
Serial Connectors
Description
A/D Expansion shield provide 2 Serial connectors (Serial2 and Serial3).

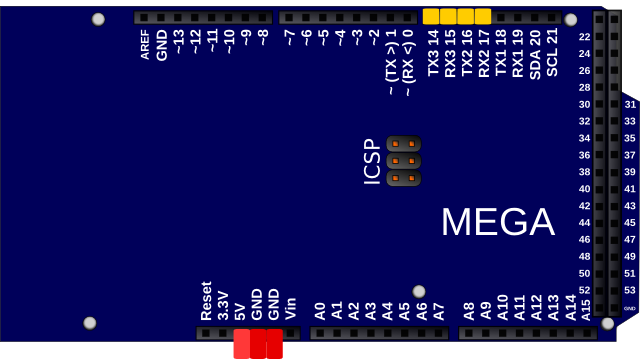

Used Pins
Digital Pin: 14, 15, 16, 17
Power Pin: GND, +5V

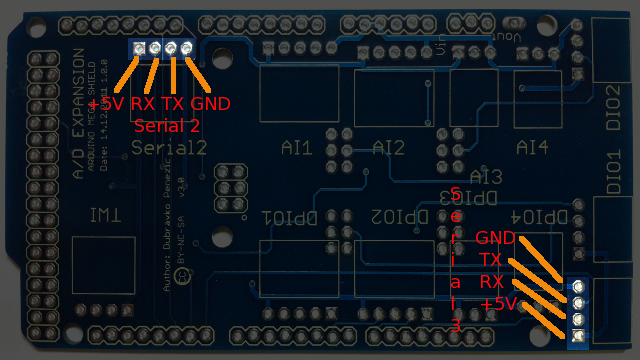

Connectors
