A/D Expansion PCB
Analogue Pin Connectors
Description

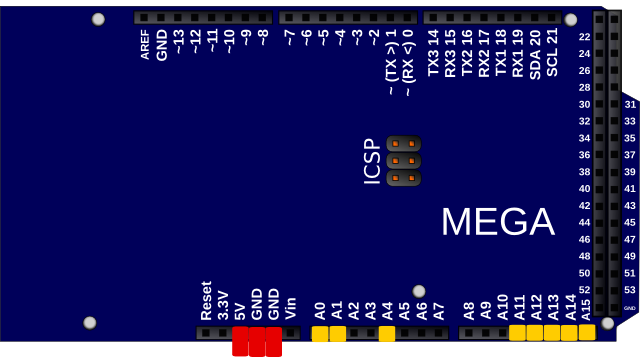

A/D Expansion shield provide 4 Analogue Pin connectors (AIO1, AIO2, AIO3, AIO4) which are connected directly to analogue pins.
Used Pins
Analogue Pin: 0, 1, 4, 11, 12, 13, 14, 15
Power Pin: GND, +5V
Connectors
