A/D Expansion PCB
Analogue/Digital Connection Pads
Description
A/D Expansion shield provide 2 Analogue and 4 Digital Connection pads.

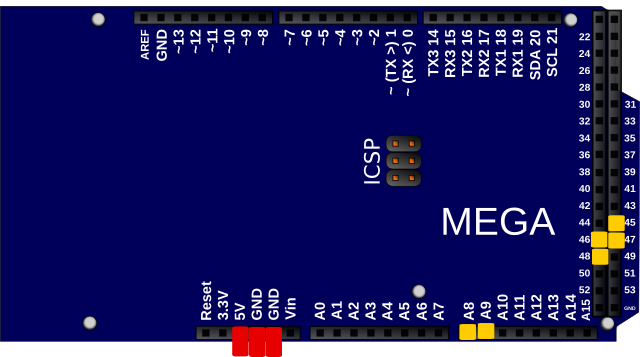

Used Pins
Digital Pin: 45, 46, 47, 48
Analogue Pin: A8, A9
Power Pin: GND, +5V

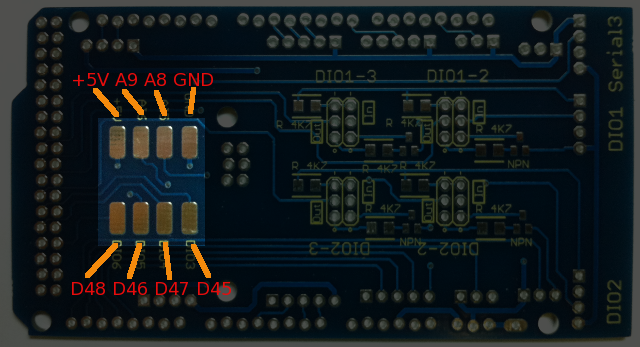

Pads
