Name: Raspberry Pi Control Board
Type: Raspberry Pi Board
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:

• Signalling RGB LED
• Signalling Green LED 2x
• Modular header for 1-wire devices
• DS18B20 temperature sensor
• 5x pins header with 3x IO lines (keys connector)
• 4x pins header with 2x IO lines (PWM IO pins)
• Pig-back connector to Raspberry Pi
• Small Footprint

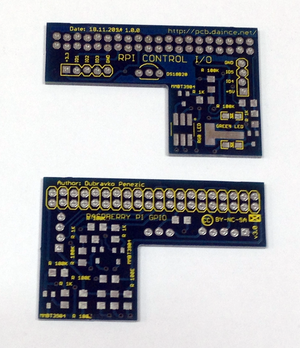

PCB Top & Bottom image:


Schematic:
PDF file with schematics

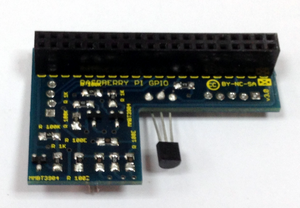

Top side:

Bottom side:

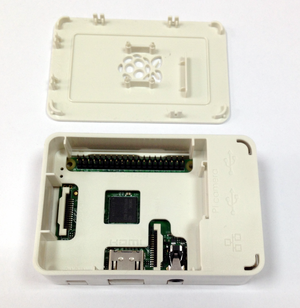

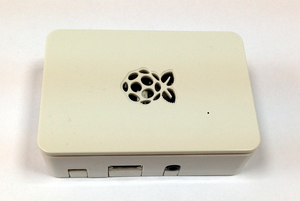

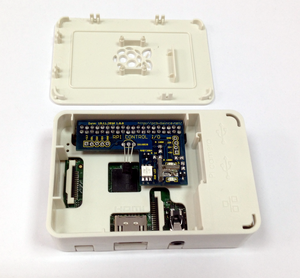

Board nicely fit in to RS Raspberry Pi B+ case.

All configuration options are available in Git repository on URL http://gitlab.daince.net/public.
