BASIC INFORMATION
Name: Sensor Unit 1 V 1.0.0
Type: Sensor Unit Board
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:
- CapSense functionality
- RS485 connectivity
- Connection to Basic Arduino Compatible Board
- Connection to Sensor for measure soil temperature and humidity
- Development area SMD

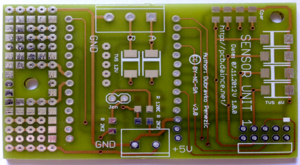

PCB Top image:

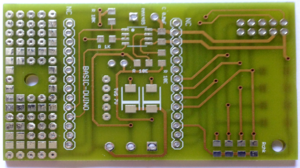

PCB Bottom image:
Implementation

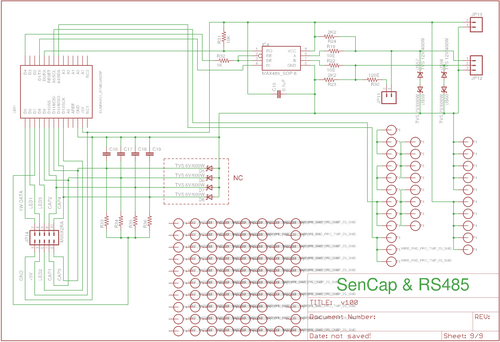

Schematic
