Power over Ethernet 5V Module Raspberry Pi PC-Duino Cubieboard USB DC-DC

DC-DC POI 5V USB

POWER/POI 5V MODULE

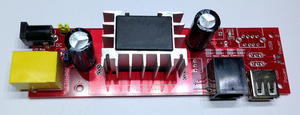

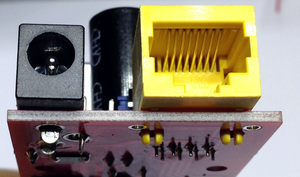

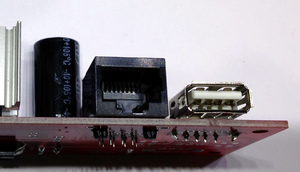

<div style="text-align: center;"><font size="5"><span style="font-weight: bold;">POWER/POE 5V MODULE V 1.0</span><font size="4"><br></font></font><div style="text-align: left;"><font size="3"><span style="font-weight: bold;">Description:<br><span style="font-weight: bold;"></span></span>This module implement DC-DC Step Down Voltage Converter with following functionality :<span style="font-weight: bold;"><span style="font-weight: bold;"><br></span></span></font><br><ul><li>Fuse (500mA) and diode voltage input controlling</li><li>DC in from Power Over Ethernet or Power barrel connector <br></li><li>Voltage step down controller (HRD05003)</li><li>ON/OFF capability</li><li>USB A Female output connector<br></li><li>LED controlling signalization</li><li>Input voltage 9-48V</li><li>Output voltage 5V</li><li>Short cut for diode voltage down group (used when input voltage is less then 40V)<br></li></ul>More about module may be found on <a href="http://pcb.daince.net/doku.php?id=power_poi_5v">http://pcb.daince.net/doku.php?id=power_poi_5v</a><br><br><span style="font-weight: bold;">Package contain 1 full tested and working module.<br></span><span style="font-weight: bold;"></span><br>Please be aware that this module use DC-DC HRD05003 module which was reused from parts on shelf (which wasnt in production). <br></div></div><font size="5"><span style="font-weight: bold;"></span></font>

20 US$

10 US$, 4.5US$
