Arduino Mega Shield Analogue Digital I/O Expansion Board I2C Serial TWI Modular

Arduino Mega Shield

A/D EXPANSION

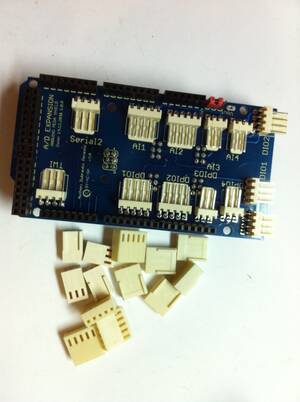

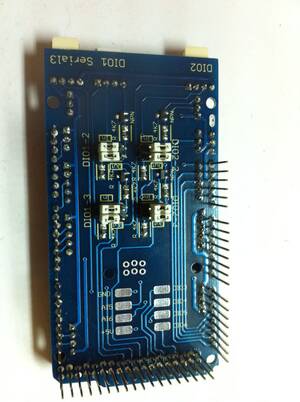

<div style="text-align: center;"><font size="5">Arduino Mega Shield - <span style="font-weight: bold;">A/D EXPANSION V 1.0<br></span><br><span style="font-weight: bold;"></span><font size="4"><br></font></font><div style="text-align: left;"><font size="3"><span style="font-weight: bold;">Note : <br>Picture show major part of complete !!!<br><br>Description:<br></span>This complete have follow part :<br></font><ul><li>New full working Arduino Mega A/D EXPANSION 1.0 with follow functionality :</li></ul><ul><ul><li>TWI/I2C connector<br></li><li>Serial 2 &amp; 3 connectors<br></li><li>digital I/O connectors 2x3, 2x1</li><li>digital I/O connectors with input pullup resistor and output resistor controlled 2x2<br></li><li>analogue connectors 2x3, 2x1</li><li>connection pads 4 digital and 2 analogue , and GND&amp;+5V</li><li>pin header selection of bus or external 5V supply <br></li></ul><li>Female connector for all male connectors including pins (4x5, 5x4, 4x3) <br></li></ul>More about A/D EXPANSION board may be found on <a href="http://pcb.daince.net/doku.php?id=data_logger">http://pcb.daince.net/doku.php?id=ad_expansion</a><br><br><span style="font-weight: bold;">PCB </span><span style="font-weight: bold;" id="result_box" class="short_text" lang="en"><span class="hps">Availability</span></span><span style="font-weight: bold;" id="result_box" class="short_text" lang="en"><span class="hps"></span></span>:<br>PCB only (4.20$), and PCB All Part Kit (14.20) are available on request.<br><br></div></div><font size="5"><span style="font-weight: bold;"></span></font>

24 US$

8 US$, 3US$
