BASIC INFORMATION

Name: I2C Digital IO Board
Type: Adpater Board
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:

  • PCF8574(A) 8 input ports with or without pull-down resistor
  • PCF8574(A) 8 output ports with transistor controlled ground (GND)
  • 2x RGB LED 5050 and 2 LED 0805 possible
  • Input/output pads available
  • Selective input or output mode for all 8 pins
  • connectivity for LCD & KYB V 1.0.0 with option to put analogue line instead of INT line to connectivity bus
  • selectable I2C address
  • selectable pulling resistors for I2C bus

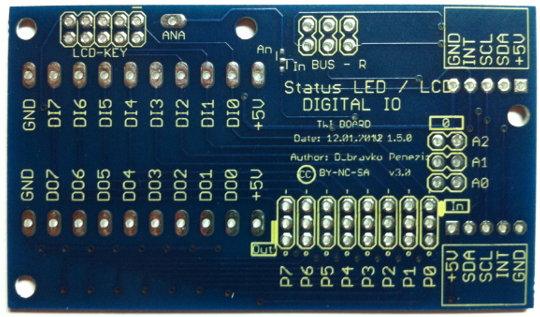

PCB Top image:

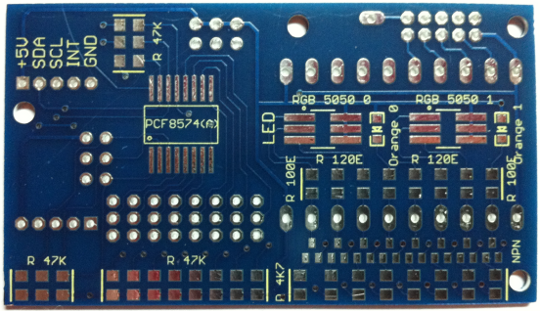

PCB Bottom image:

Implementation

Schematic




Source example

LCD_Keypad_DL_V1_0_0.ino
/*
Author: Dubravko Penezic

Version: 1.0, 2012

This code is example how to use DpI2CIOPCF8574 library.

Source code is provided as is, without any warranty.

Distributetd under CC BY v 3.0

http://pcb.daince.net/doku.php?id=arduino_code
*/

// Library contain Wire.h include, but you need to declare it once again
#include <Wire.h>

#include <DpI2CIOPCF8574.h>

// set the address to 0x20 - 0x27 for PCF8574
// set the address 0x38 - 0x3F for PCF8574A used on daince I/O Expansion
#define boardAddr 0x38

// initialize daince I/O Expansion

DpI2CIOPCF8574 io;

void setup(void) {
  Serial.begin(9600);
  Serial.println("DpI2CIOPCF8574 V 1.0");

  Wire.begin();
  io.begin(boardAddr);
// all pins are output high on begining
  io.setOutputLow();

}

void loop(void) {

  for(int i = 0; i<8; i++){
   io.setOutputStatus();
   io.toggleOutputPin(i);
   delay(2000);
  }
}


DpI2CIOPCF8574 library you may found here.
