BASIC INFORMATION

Notice: Board is not available !!! New version 2.0 will be available on May-Jun 2014.

Name: DATA LOGER
Type: Arduino MEGA Shield
Version: 1.0.0
Author: Dubravko Penezic
Copyright: Creative Commons BY-NC-SA v 3.0
Implemented function:

PCB image

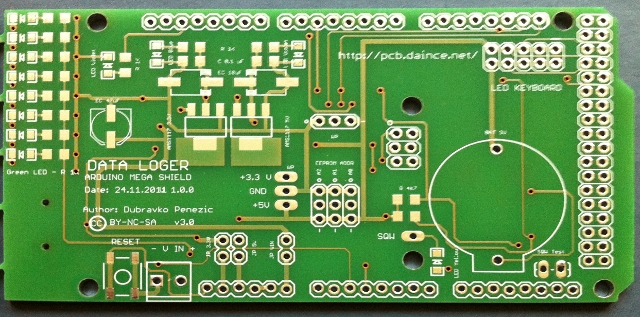

PCB Top image:

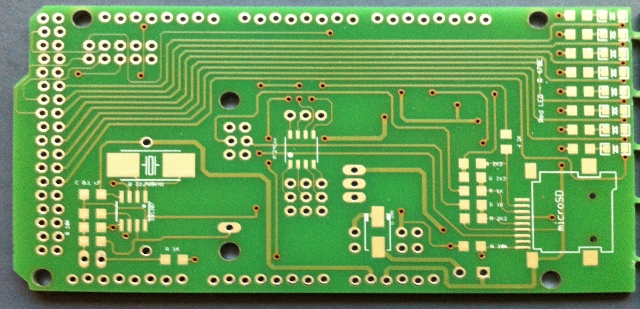

PCB Bottom image:

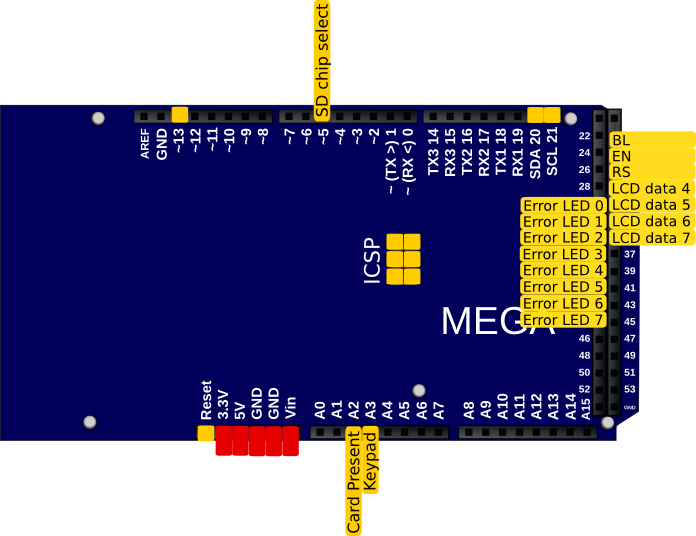

Used Pins

Digital Pin: 5, 20, 21, 23, 25, 27, 29, 30, 31, 32, 33, 34, 35, 36, 38, 40, 42, 44
Analogue Pin: 2, 3
Bus: ICSP
Power Pin: GND, +5V, +3.3V, VIN
Other Pin: RESET



Schematic

Schematic are available in follow file : dl_v_1_0_0.pdf

Functional example

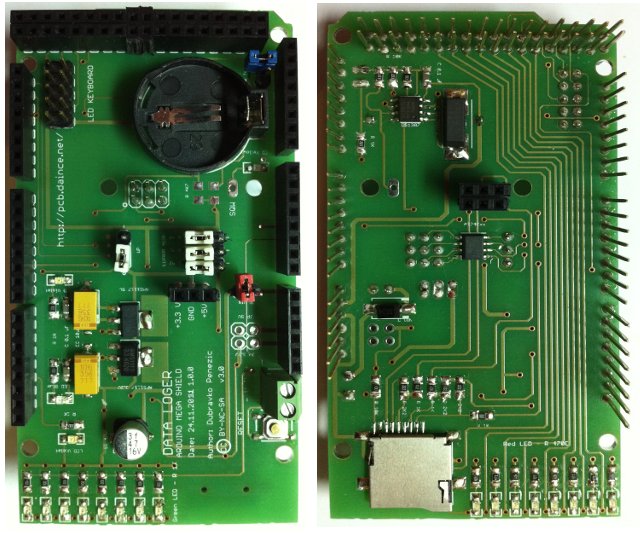

Type A

Type A have extra long pins, all functionality without power section (powerd from Arduino board). Price around 27.00 US$ .

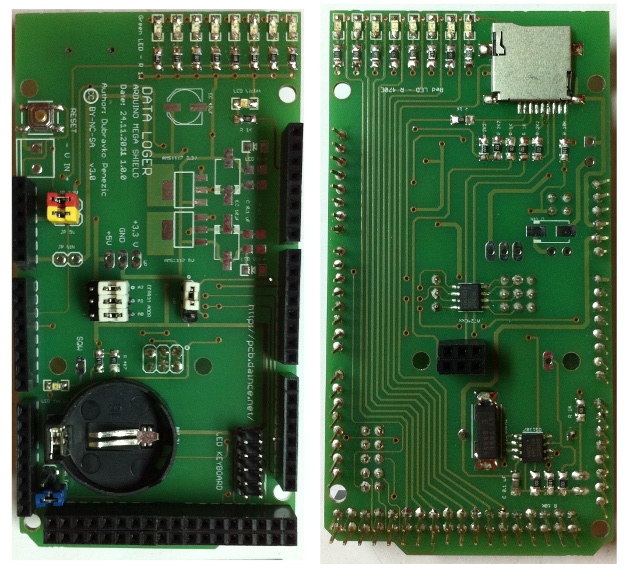

Type B

Type B have extra long pins, all functionality (self powerd from Vin or from power terminal header). Price around 29.50 US$ .

Kit Instruction
